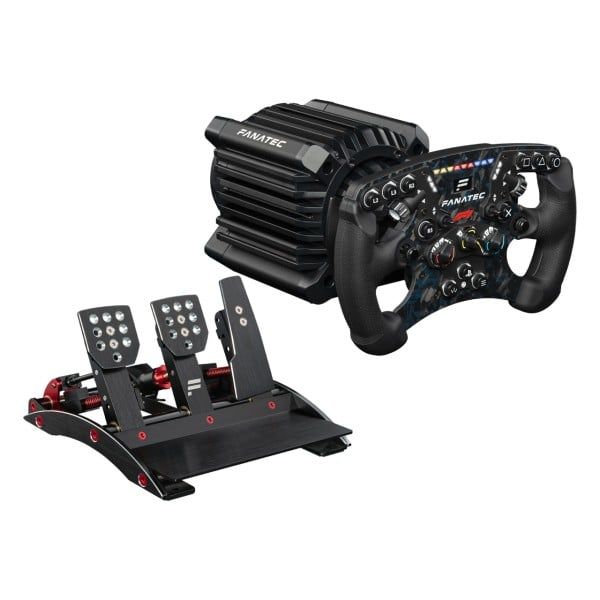

Fanatec Clubsport Racing Wheel F1 Ready2Race Bundle

Feel the precision of Formula 1® with every lap you take.

The ClubSport Racing Wheel F1® combines an advanced Formula Steering Wheel with a unique blue forged carbon finish and the 15 Nm ClubSport DD+ Wheel Base to deliver consistent torque performance and detailed force feedback. Our partnership with Sony Interactive Entertainment means that the ClubSport Racing Wheel F1® works seamlessly with all PlayStation®4 and PlayStation®5 systems.

Designed for F1® Sim Racing.

Officially licensed by Formula 1®, the iconic 270 mm ClubSport Formula wheel features a stunning blue forged carbon finish with perforated leather grips. Programmable RGB RevLEDs can show motor RPM and optimal shifting point, and the two RGB FlagLEDs that can be triggered by telemetry, such as tyre slip, fuel level, or warning flags.

Intuitive inputs.

The CNC-machined aluminium magnetic shifters have an authentic feel, with a positive and satisfying click. The wheel is packed with 11 buttons, 12-way multi-position switches, thumb encoders, toggle switches – all laid out ergonomically so you can quickly train your muscle memory. Fine-tune the force feedback while you drive using the OLED display and Tuning Menu.

The most advanced Direct Drive system officially licensed for PlayStation®5.

The combination of PlayStation®5 console performance with FANATEC® Direct Drive technology delivers responsive and incredibly dynamic force feedback. Of course, the ClubSport DD+ Wheel Base works on PC too.

Smooth operator.

By splitting the rotor into offset segments, cogging torque is naturally reduced. Combined with our patented FluxBarrier technology which increases efficiency and smoothness, the result is crystal-clear force feedback information in every driving situation.

Consistent torque, lap after lap.

Engineered to meet strict cooling requirements, the ClubSport DD+ is the most thermally stable Wheel Base in its class, so you can have absolute confidence that the torque output and force feedback will remain consistent, no matter how long you drive.

ClubSport Pedals V3.

Nothing will make you faster than a set of good pedals. We are using the latest and most advanced technology to give you that competitive edge.

90 kg adjustable load cell.

The custom made load cell is extremely durable and much more precise than the previous generation. You can apply a realistic and strong pressure, and precisely control the brake with muscle tension, just like in a real car.

Contactless Hall sensors.

The electronics have been completely revised and the magnetic Hall sensors of the gas and clutch feature 4x the resolution of the previous generation V2 pedals. Each axis can be calibrated through the wheel or using the driver.

Further links

Questions about the product? Further ClubSport products

Features

ClubSport Steering Wheel F1® PS5:

• Officially licensed by Formula 1®
• Officially licensed for PlayStation®5 (compatibility is achieved via the Wheel Base)
• Unique to ClubSport Racing Wheel F1® package, not sold separately
• F1®-style steering wheel with a compact 270 mm diameter for fast movements and reactions
• Strong, 5 mm-thick blue carbon fibre front plate; unique finish to each wheel
• Genuine leather grips (perforated for breathability)
• ClubSport Magnetic Paddle Module preinstalled
  • 3 mm-thick, black anodised aluminium paddle plates
  • Paddle module cage made of diecast and CNC machined aluminium
  • Neodymium magnets
• QR2 Wheel-Side preinstalled
  • Diecast aluminium with CNC-machined and black anodised finish
  • Precision fit means you feel all the detail of FullForce technology
• 11 buttons plus four paddles with ultra-reliable switches
• Two 2-way toggle switches
• Two 12-way multi-position switches with encoder functionality
• 7-way FunkySwitch™: left, right, up, and down directional inputs, push button, and rotary encoder functionality
• Analogue joystick
• Two thumb encoders easily reachable while driving without releasing the grips
• RevLEDs with nine multi-colour LEDs to show motor RPM and optimal shifting point as games program through the Fanatec SDK
• Two FlagLEDs with three multi-colour LEDs each to indicate tyre slip, flag warnings, pit limiter, and more, as games program through the Fanatec SDK
• 1" 128x64 white OLED display to show telemetry data like speed or gear as games program through the Fanatec SDK
• Tuning functions with OLED display to adjust settings independent from the game and during gameplay

ClubSport DD+ Wheel Base:

• Officially licensed for PlayStation®5 consoles and PlayStation®4 consoles
• Direct Drive servo motor
  • Custom-designed in Germany for the ClubSport DD+ specifically for sim racing
  • 15 Nm consistent torque
  • Optimised skew angle on rotor magnets reduces cogging torque
  • Patented, exclusive FluxBarrier technology improves motor efficiency and smoothness
• FullForce technology
  • New force feedback protocol developed for Fanatec Direct Drive
  • Super low-latency detail effects through fine motor frequency control
• Passively cooled Wheel Base
  • Most thermally stable Wheel Base in its class
  • Consistent performance under the most extreme conditions
• QR2
  • Wheel Base optimised for QR2 from the ground-up
  • Electronics module integrated with shaft
  • Diecast aluminium with CNC-machined finish
  • Motorsport-derived quick release system
• Standard Tuning Menu allows beginners to get started quickly without having to worry about settings
• Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences
• High-resolution (contactless) Hall-position-sensor
• Rotation: 2520 degrees (electronically limited, adjustable)
• Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data between Steering Wheel and Wheel Base without the need for a mechanical limiter (allows for high steering angle settings)
• Compatible with entire Fanatec ecosystem (see Compatibility section for details)
• T-nut rail system on sides and bottom for easily adjustable hard-mounting
• Ports:
  • Power supply
  • USB-C to PC / console
  • Shifter 1
  • Shifter 2 (Sequential only)
  • Pedals
  • Handbrake
  • CAN (for future Fanatec peripherals)
• Front-mounted threaded inserts for future Fanatec accessories. Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.

ClubSport Pedals V3:

• High resolution pedals with magnetic and contactless sensors on gas and clutch for a long life and maximum performance
• Pressure sensitive brake with custom made 90 kg load cell sensor
• Adjustable brake stiffness and travel without tools
• 12bit resolution (4096 values) on all axis
• Alternative D-shape race plates in curved design. Ideal for standing pedals
• Pedal extension to adjust the angle of the pedal plate and to change the angle of the whole pedal arm
• Brake sensitivity can be adjusted through the tuning menu of the wheel and during the race
• Vibration motor on throttle pedal indicates rear wheel spin and oversteer (control by games is possible via Fanatec Wheel SDK)
• Vibration motor on brake pedal to simulate ABS and indicate locking tires (controlled by Fanatec wheels: Compatible to all games. Dynamic control by games is possible via Fanatec Wheel SDK)
• Design of the gas pedal allows quick exchange of the springs. Two springs with different strength are included
• Optional damper kit for gas and brake. The hydraulic dampening resistance can easily be adjusted with a knob
• Full multi platform compatibility, depending solely on the platform compatibilities of the connected Wheel Base/Racing Wheel
• Full metal construction of CNC-machined aluminum
• Ultimate adjustability: Position of pedal plates in all directions, angle, spring strength at throttle, brake sensitivity, brake travel

Compatibility

The ClubSport DD+ Wheel Base is compatible with:

• All Fanatec Steering Wheels (with QR2)
• All Fanatec Pedals (adapter cables might be required on pedals without RJ12 connection)
• ClubSport Shifter (all versions)
• ClubSport Handbrake
• All Fanatec Cockpits
• ClubSport DD Table Clamp
• ClubSport Table Clamp V2
• Podium Mounting Brackets (the ClubSport DD+ Wheel Base includes M6 T-nuts for side-mounting; the Podium Mounting Brackets require the use of M6 bolts and washers)

Note: ClubSport Static Shifter Paddles are not supported.

Platforms

• This product is compatible with all PlayStation®4 consoles and PlayStation®5 consoles.
• This product is compatible with PC on all major racing games.
• Other platforms: Compatibility with other platforms depends on the used steering wheel. For more information, please check the product page of the steering wheel you plan to use.

Please note: PC and other platform compatibility is tested by Fanatec, but not tested nor endorsed by Sony Interactive Entertainment.

Special Notes

• Not suitable for children. The fast movements of the steering wheel and strong torque can be dangerous. Please read the safety instructions.
• Steering Wheels fitted with QR2 Lite Wheel-Side will be limited to 8 Nm torque.

What's included

• ClubSport Racing Wheel F1®
• ClubSport Pedals V3
